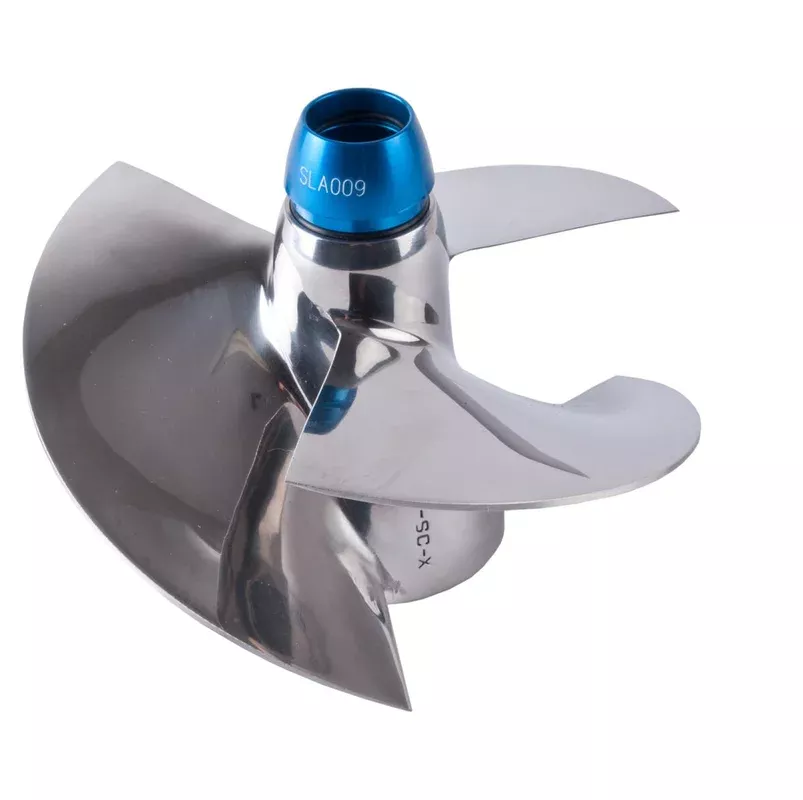

Solas IJK Impeller for Kawasaki KF-SC-J (17-22)

Description

Details

Super Camber A-B-C-D-E – For a Cost Effective Solution. The Super Camber A-B-C-D-E series remains one of the most popular products in the personal watercraft market. The Super Camber blade has increased flow and the thrust of the impeller.

Installation

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) fromthe stator

3.)Hold the rear end of the shaft with abench vise. Remove the impeller with an impeller wrench. Turning counter clockwisewill loosen the impeller.

4.)Visually inspect thread on shaft andimpeller for debris or damage. Apply grease or anti-seize on the thread beforeinstallation.

5.)Screw the impeller by hand; please becareful of the sharp edge of the impeller. Tighten with the impeller wrench. Ifthe impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and put it back onthe PWC.

*this installation guide is s estedfor reference only
*please refer to your originalservice manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts andare available for purchase on our website
