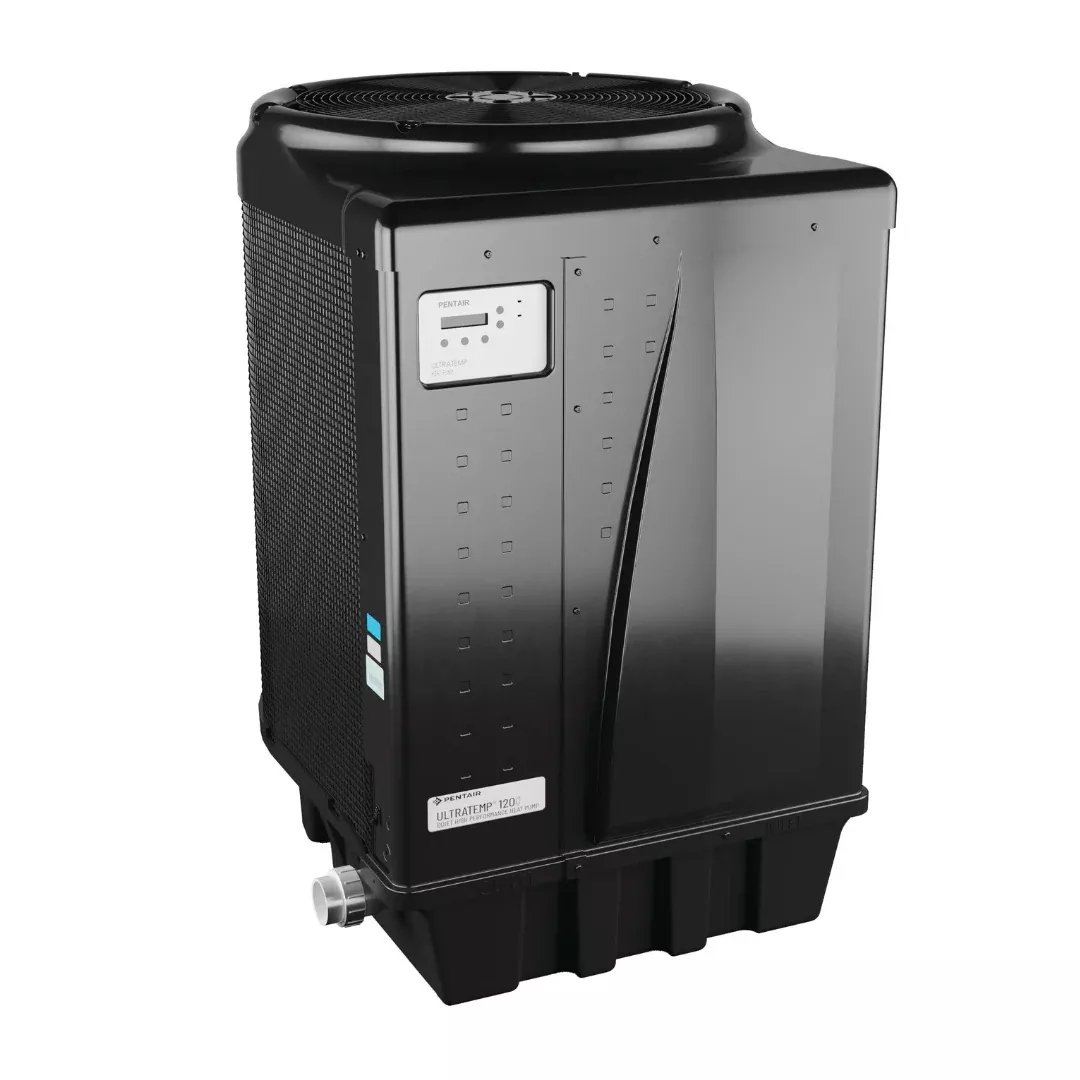

Pentair UltraTemp 140 Heat Pump Black 145K BTU, 460964

Description

UltraTemp® High-Performance Pool Heat Pump

An energy-efficient, cost-effective solution for heating pools and spas.

• First heat pump using R410A refrigerant, which is non-ozone-depleting
• 100% titanium heat exchanger ensures corrosion-free performance and long life
• LCD control board with easy-to-read, intuitive full-word messages
• AutoSet feature monitors water temperature, adjusting the pump to maintain the desired heat
• Automatic defrost prevents freezing, enabling operation at lower temperatures
• Compatible with all automated control systems
• Durable, corrosion-resistant plastic composite cabinet designed for harsh climates and pool chemicals
• ETL listed for safety
• Thermostatic Expansion Valve (TXV) optimizes refrigerant flow for maximum efficiency and output
• Meets or exceeds all efficiency standards and codes, certified by AHRI

Specifications:

• Brand:
  Pentair
• Application:
  Outdoor, Pool, Spa
• Shipping Dimensions:
  43 x 34 x 51 inch
• BTU Output:
  145,000 British thermal unit
• Cabinet Depth:
  33.8 inch
• Cabinet Height:
  45.5 inch
• Cabinet Width:
  38.9 inch
• Commercial, Residential, or Professional:
  Residential
• Compressor Type:
  Scroll
• Control Type:
  Digital
• Weight:
  335 pounds
• Electrical Input:
  7.2 kilowatts
• Flow Rate Max:
  120 gal/min
• Flow Rate Min:
  30 gal/min
• Frequency Rating (Hz):
  60
• Green or Energy Efficient Product:
  True
• Heat Exchanger Material:
  Titanium
• Housing Material:
  Plastic
• Maximum Circuit Breaker:
  50 amperage
• Min Circuit Ampacity:
  43 amperage
• Phase:
  Single
• Refrigerant Model:
  R410A
• Standards Approvals:
  AHRI Certified
• Voltage:
  230V
• UPC Code:
  788379859800

Support Documents:

• Brochure
• Install Guide

Configurations:

• 460932 UltraTemp 110 Almond
• 460962 UltraTemp 110 Black
• 460935 UltraTemp 120 H/C Almond
• 460965 UltraTemp 120 H/C Black
• 460833 UltraTemp 120Q Almond
• 460863 UltraTemp 120Q Black
• 460934 UltraTemp 140 Almond
• 460964 UltraTemp 140 Black
• 460958 UltraTemp 140 H/C Almond
• 460959 UltraTemp 140 H/C Black
• 462032 UltraTemp 140 H/C Active Defrost Almond
• 460928 UltraTemp 140C Almond
