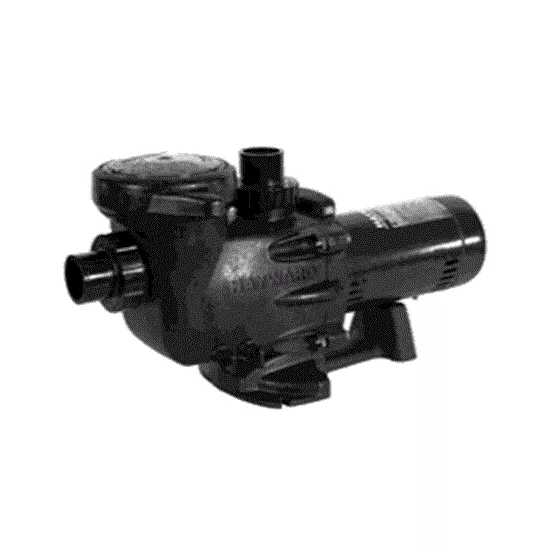

Hayward Max-Flo II Pool Pump – 3/4 HP

Description

Hayward 3/4 HP Max-Flo Pump (Max Rated) High Performance Pump Series.

Hayward Max-Flo combines maximum performance with durable, corrosion-proof materials. MaxFlo Pumps are an exceptional value. The swing-aside hand knobs and large strainer basket make MaxFlo the ideal choice for both new pool and aftermarket installations. When you’re looking for both economy and performance, specify MaxFlo.

Application

• In-ground Swimming Pools

Features:

• Heavy-duty, high performance motor for quieter, cooler operation.
• Self-priming (suction lift up to 8′ above water level)
• Exclusive swing-aside hand knobs make strainer cover removal easy.
• Lexan see-thru strainer cover lets you see when basket needs cleaning.
• Strainer basket incorporates an integral non-corrosive handle. Load extender ribbing ensures free flowing operation.
• All components molded of corrosion proof PermaGlas XL for extra durability and long life.
• Service-ease design gives simple access to all internal parts.

Max Rated Single Speed:

• Model Number: SP2805X7, H.P.: 3/4, Voltage: 115/230, Pipe Size: 1 1/2″, Dim. “A”: 10 5/8″, Ctn. Qty.: 1, Ctn. Weight: 30 lbs.
• Model Number: SP2807X10, H.P.: 1, Voltage: 115/230, Pipe Size: 1 1/2″, Dim. “A”: 11″, Ctn. Qty.: 1, Ctn. Weight: 33 lbs.
• Model Number: SP2810X15, H.P.: 1 1/2, Voltage: 115/230, Pipe Size: 1 1/2″, Dim. “A”: 12 1/8″, Ctn. Qty.: 1, Ctn. Weight: 38 lbs.
• Model Number: SP2815X20, H.P.: 2, Voltage: 115/230, Pipe Size: 1 1/2″, Dim. “A”: 13 1/8″, Ctn. Qty.: 1, Ctn. Weight: 44 lbs.

Performance Data:

• SP2805X7 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft – 64, 30 ft – 57, 40 ft – 46, 50 ft – 31
• SP2807X10 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft – 82, 30 ft – 75, 40 ft – 63, 50 ft – 50, 60 ft – 27
• SP2810X15 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft – 94, 30 ft – 87, 40 ft – 77, 50 ft – 67, 60 ft – 50, 70 ft – 10
• SP2815X20 Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head): 20 ft – 107, 30 ft – 105, 40 ft – 95, 50 ft – 85, 60 ft – 70, 70 ft – 51

1 Year Warranty on Strainer Housing

1 Year Warranty on Motor
